| Model | LHECCH.R110 |
|---|---|
| Electrical Parameters Input voltage | 3*220V/380V,±20% |
| Operating power consumption | ≤5W |
| Ethernet communication | Number of ways *2,10/100Mbps Adaptive |
| WLAN communication | 2.4GHz/ 802.11 b/g/n, support STA/AP/STA+AP model |
| 4G communication | LTE Cat 4; LTE-FDD B1/3/5/7/8/20/28; LTE-TDD B38/40/41 |
| Operating temperature | -30 ~ +65°C |
| Working humidity | 5% – 95%, Relative humidity non-condensing |
| Storage temperature | -40 ~ +70°C |
| Working altitude | ≤ 2000m |
| Protection level | IP20 |
| Dimensions (length*width*height) | 105mm x 72mm x 66.5mm |
| Installation method | Guide rail type |
| Operating System | Linux |
| Communication Protocol | OCPP 1.6/2.0 JSON |
| Memory | 64M |
| Hard Storage | 256M |
| Number of chargers connected | ≤100 (Dynamic), ≤200 (Static) |

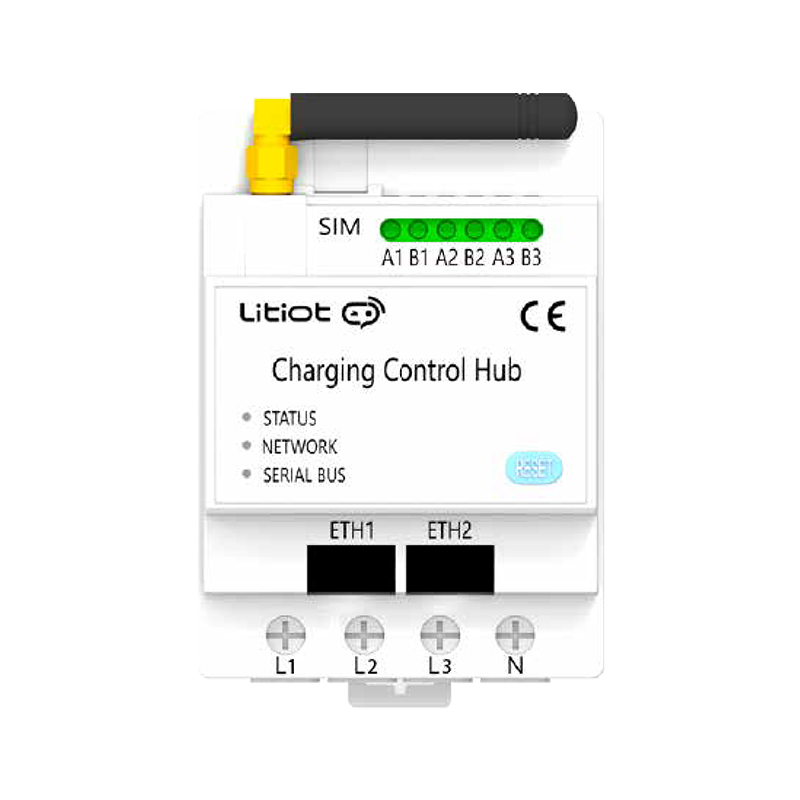

EV Charging Control Hub
د.م. 0,00
- Dynamic load management
- Three limit mode
- Support overload protection and three-phase balance optimization
- Support cluster management control
