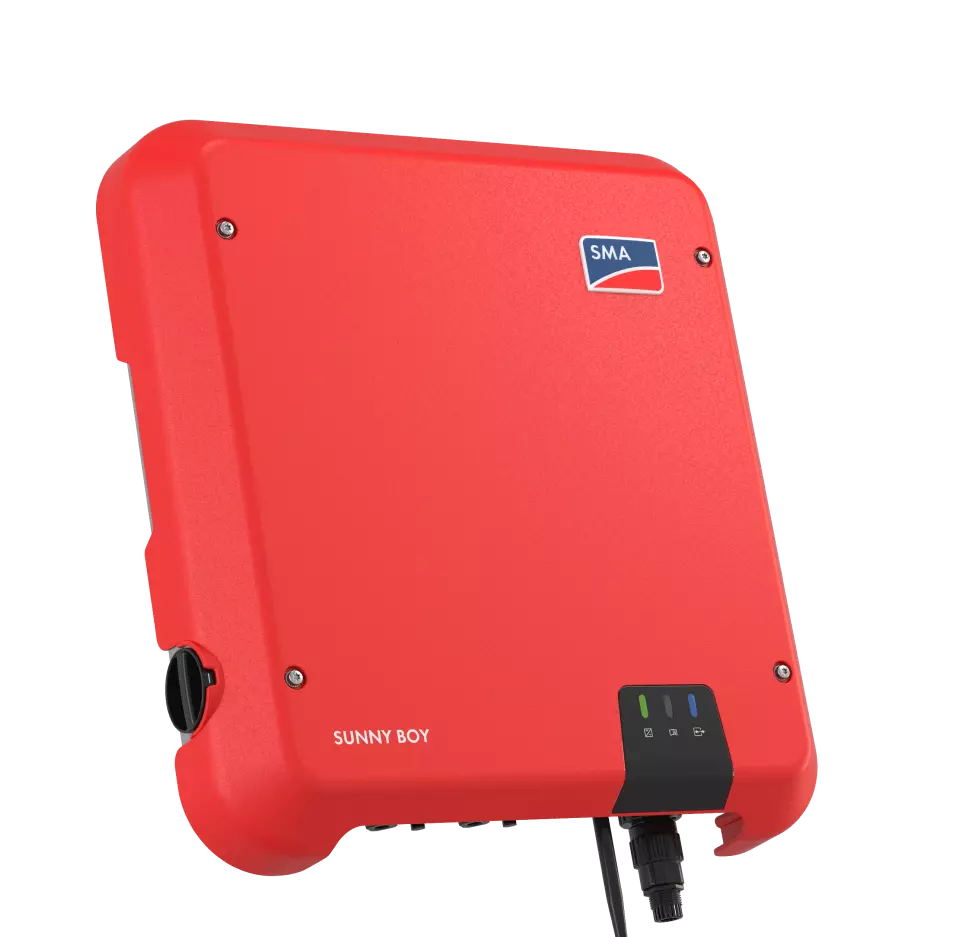

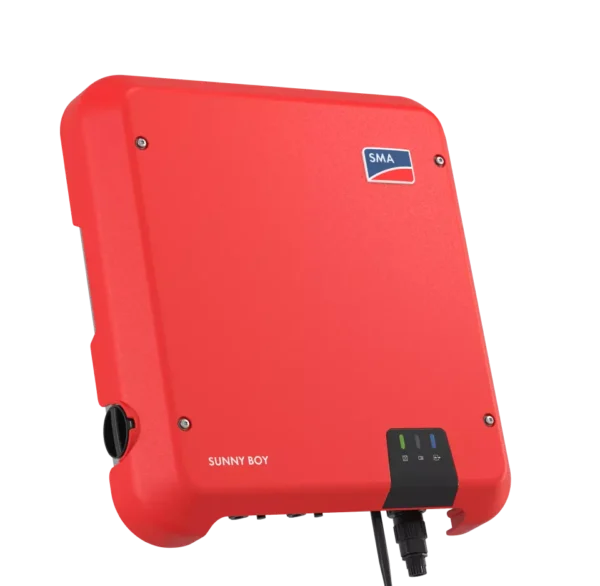

Sunny Boy 3.0 – 6.0 Single-Phase Inverter
Sunny Boy 3.0 – 6.0 Single-Phase Inverter
SKU: SB3.0-1AV-41 … SB6.0-1AV-41
- Power
- 3.0 – 6.0 kW
- Phases
- 1
- Warranty
- 5 years (ext. to 10)

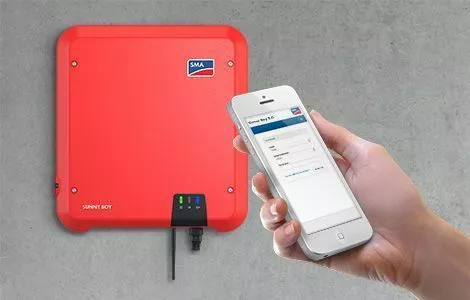

The SMA Sunny Boy 3.0–6.0 is a single-phase transformerless string inverter for private homes. Weighing only 17.5 kg, it can be installed by one person and commissioned in minutes via its integrated WLAN/Ethernet web interface.
Two MPP trackers and the integrated SMA ShadeFix shade management maximise yield even on complex roofs, and free monitoring is included through SMA Smart Connected. SMA storage and energy-management solutions can be added at any time.
Certifications
- IEC 62109-1/-2
- VDE-AR-N 4105
- EN 50549-1
- IEC 61727
- IEC 62116
- CE
Available models
| Model | AC power | Max. PV power | MPP trackers | Max. efficiency |
|---|---|---|---|---|
| SB3.0-1AV-41 | 3.0 kW | 5.5 kWp | 2 | 97.0 % |
| SB3.6-1AV-41 | 3.68 kW | 5.5 kWp | 2 | 97.0 % |
| SB4.0-1AV-41 | 4.0 kW | 7.5 kWp | 2 | 97.0 % |
| SB5.0-1AV-41 | 5.0 kW | 7.5 kWp | 2 | 97.0 % |
| SB6.0-1AV-41 | 6.0 kW | 9.0 kWp | 2 | 97.0 % |
